EVIAS (EndoVascular Intracranial Aneurysm System):
A Training and Case Specific Rehearsal Solution for Unruptured Aneurysm

EVIAS Station

Unruptured Aneurysm Cartridge

Unruptured Aneurysm Training & Rehearsal

  • Desired mechanical behavior based on INVIVOTECH® Technology providing critical tactile feedback
  • From CTA and/or 3D rotational angiography to 3D printed model within 5 days
  • Lightweight, portable, plug-and-play Station

BIOMODEX® EVIAS (EndoVascular Intracranial Aneurysm System) is a solution used for physician education, training, and patient-specific rehearsal.

  • Utilizes FDA cleared and CE marked software for segmentation of 3D RA or CTA
  • INVIVOTECH® is a proprietary* technology that integrates tissue biomechanics in 3D printed anatomical twins
  • Anatomical twin for intracranial aneurysm procedures includes vertebral artery access, ICA, distal vasculature and aneurysms
  • Contrast agent and X-ray compatible

WARNING: BIOMODEX® products are not medical devices and are not intended to diagnose, treat, cure or prevent any health condition. Theses products have been designed for training and their safety and effectiveness as medical devices have not been demonstrated.

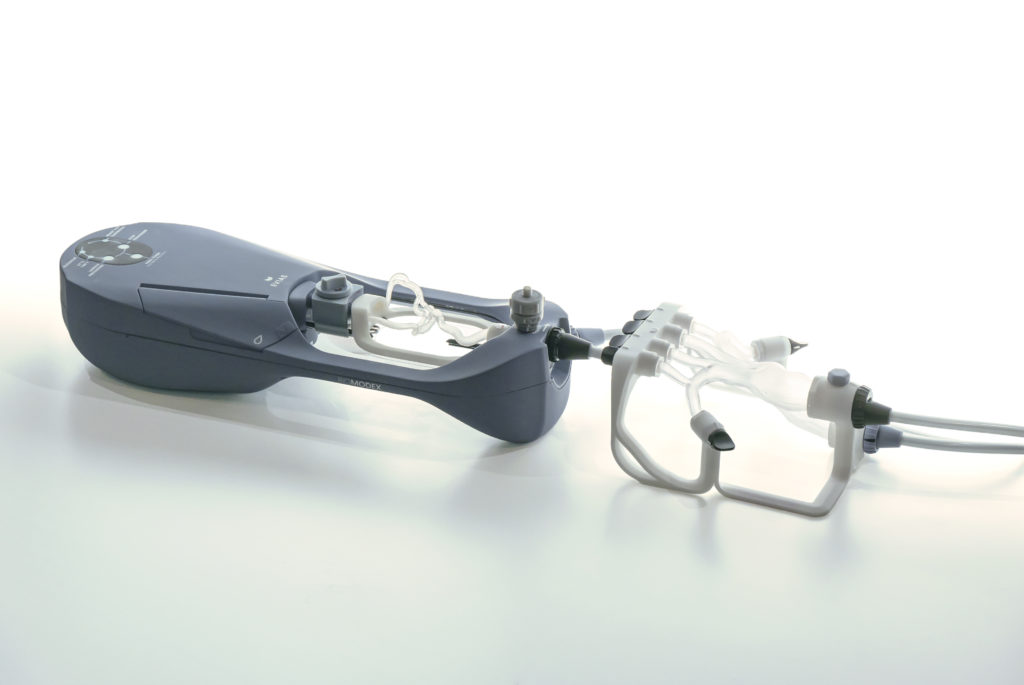

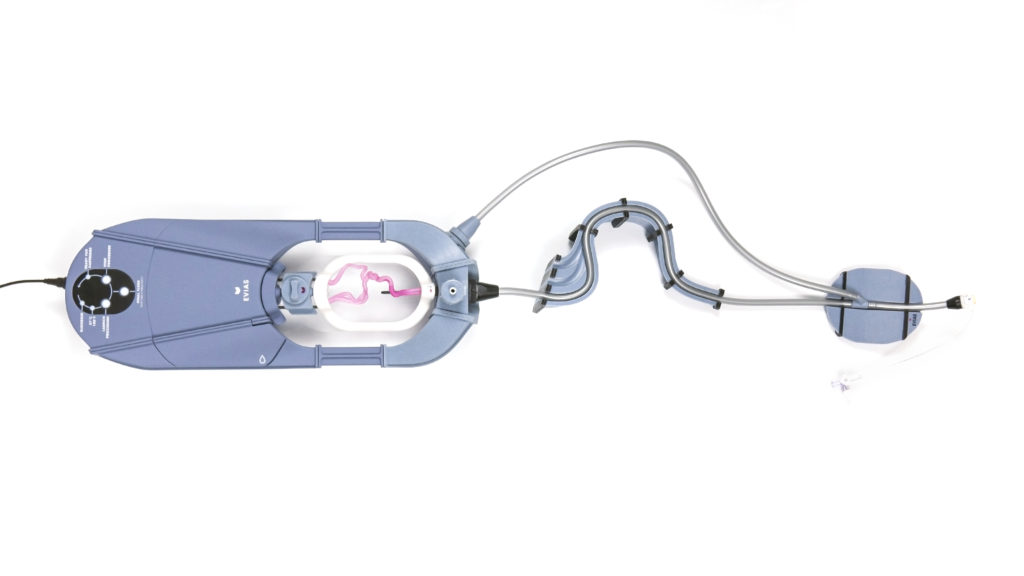

BIOMODEX® EVIAS  Station has been designed to simulate the characteristics of intracranial aneurysms (geometry and physiological temperature). It is intended to be used in non-sterile laboratory environment.

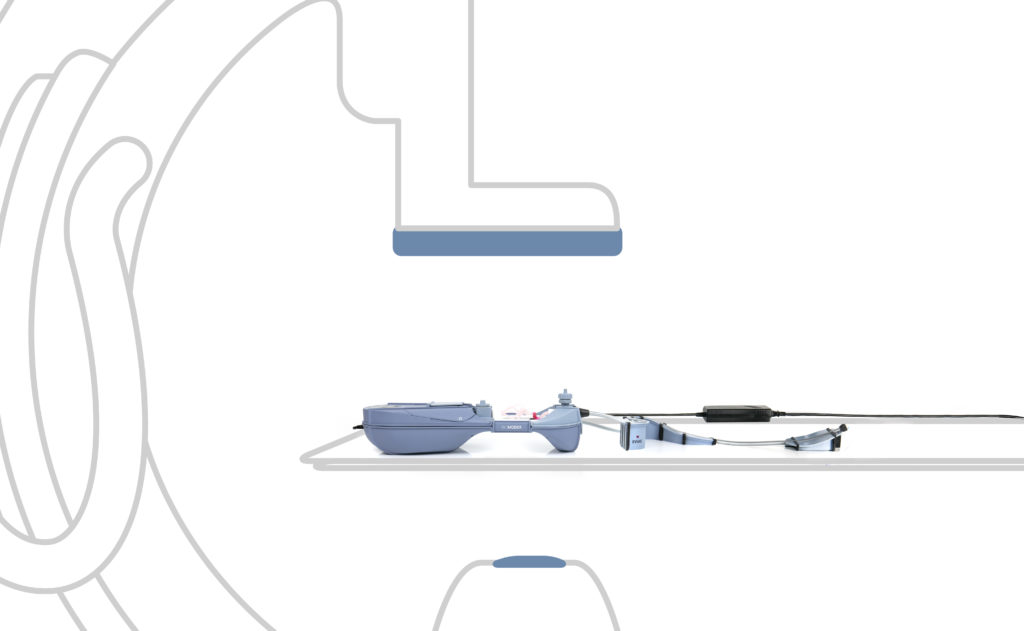

  • For use in cathlab
  • Compact and portable
  • Plug-and-play
  • Adjustable aortic arch
  • Simulated systemic flow
  • BLOODSIM replicates blood density and viscosity
  • Compatible with all BIOMODEX® EVIAS cartridges

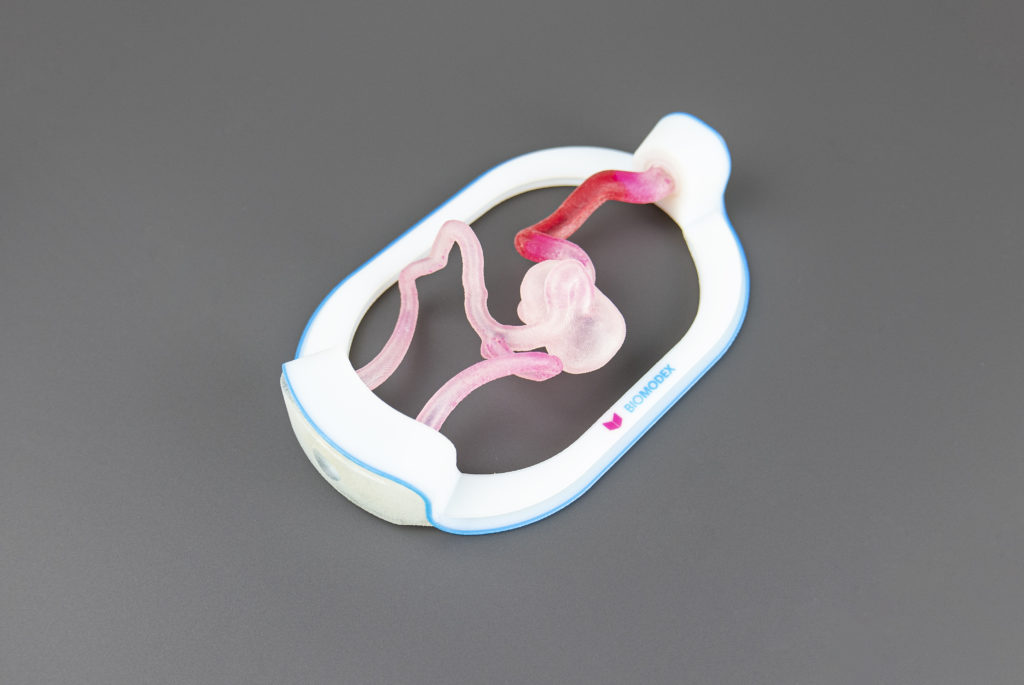

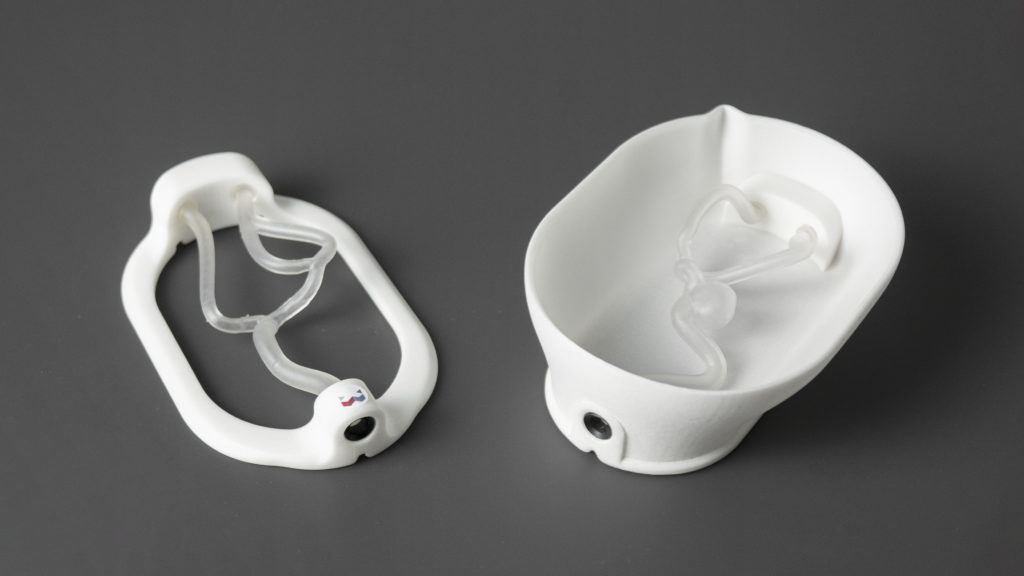

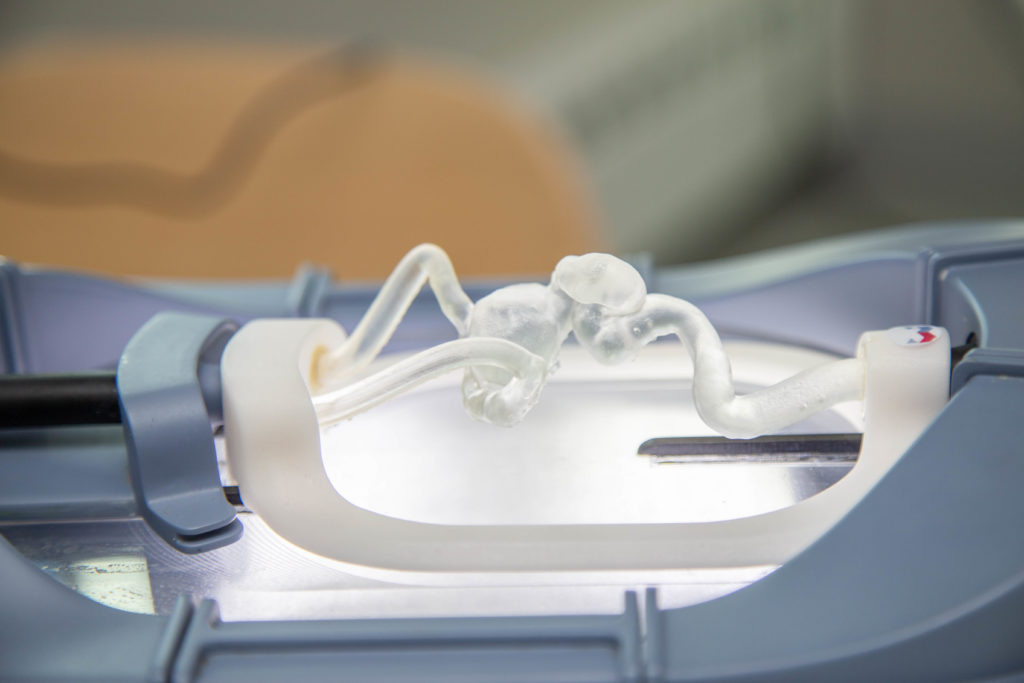

CARTRIDGE for Unruptured aneurysm: single use 3D printed anatomical twin extracted from images showing unruptured aneurysm. Thanks to our proprietary technology INVIVOTECH® It integrates desired mechanical behavior, unlike single material models such as silicone.



Intended procedures:

  • Flow diversion
  • Intrasaccular device
  • Coil embolization
  • Balloon-assisted coiling
  • Stent placement

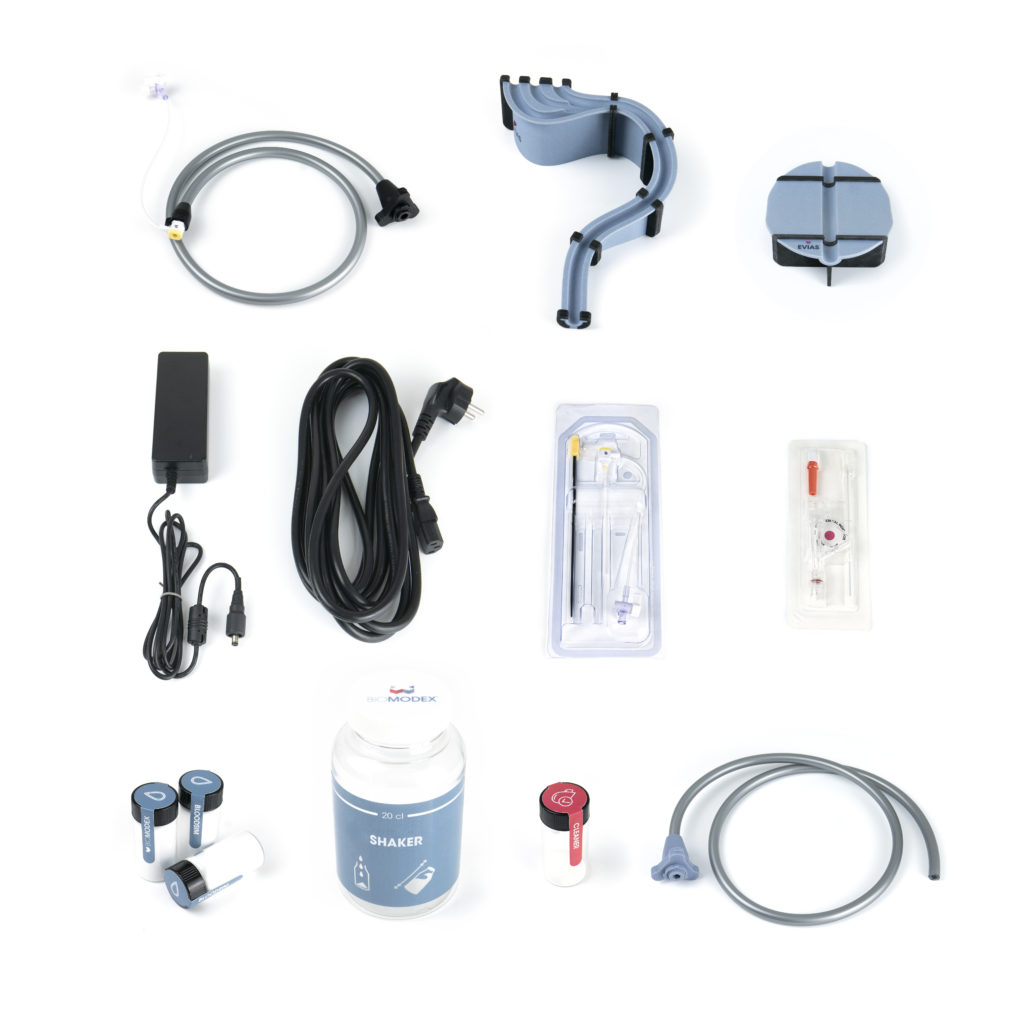

ACCESSORIES for Unruptured aneurysm:

  • FEMORAL ACCESS TUBE: simulates the artery pathway from the femoral artery to the entrance of the right/left internal carotid artery (ICA) or end of vertebral artery.
  • AORTIC ARCH: simulates the aortic arch pathway with several levels of tortuosity – type I-II-III are represented.
  • INTRODUCTION PAD: gives the appropriate angle that you would have at the insertion site at the level of the femoral artery.
  • INTRODUCER: imulates the introducer at the femoral artery. TWO (2) 9F introducers are available.
  • CONNECTOR: gives the ability to place several devices in the system. One (1) connector is available.
  • BLOODSIM: powder that mixed with saline water gives the same viscosity and density of blood. Three (3) shot of BLOODSIM are available.
Station onlyDimensions18,5 x 7 x 4 inches / 47 x 18 x 10 cm
Weight5.3 lb / 2.4 Kg

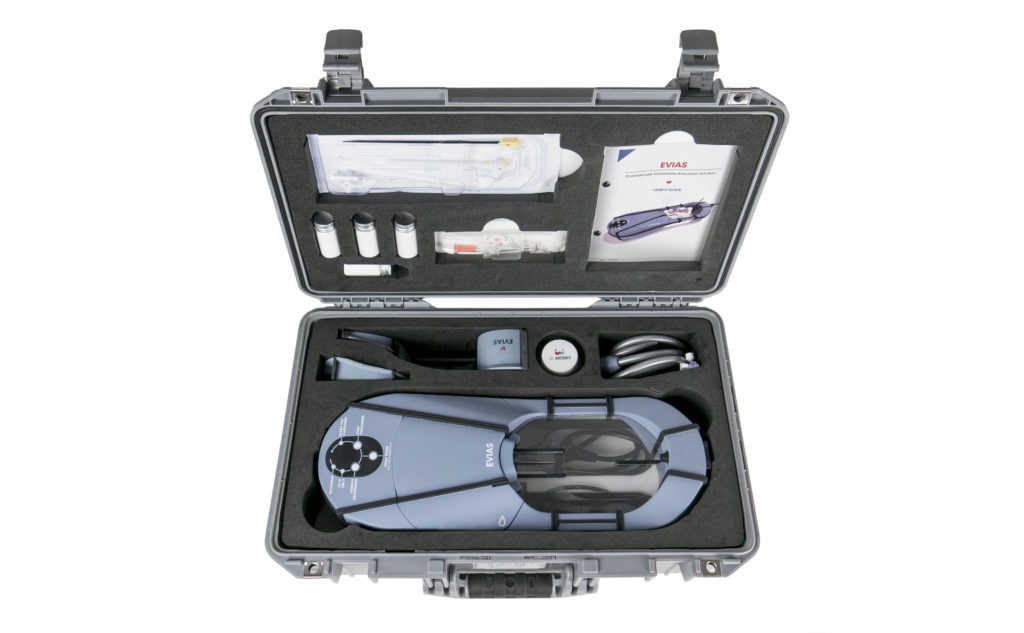

Case with Station and all accessoriesDimensions22 x 12 x 9 inches / 56 x 30 x 23 cm
Fits for Carry-on
Weight17.6 lb / 8 Kg
Average set-up delay2-5 minutes
Anatomy switch delay30-60 seconds
Power supplyMedical 24V DC / 2.5A
